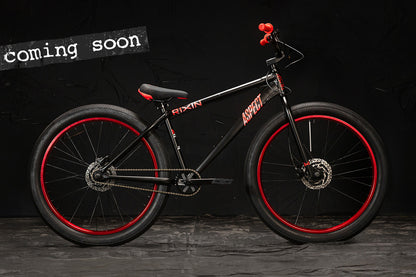

aspect complete bike 27.5"
aspect complete bike 27.5"
Couldn't load pickup availability
the aspect is designed from the ground up for bikelife. With a 6061 aluminum frame with geometry that locks into wheelies it performs at a level all its own. Full chromoly fork and 14mm rear axle in a theory turnstyle cassette hub keeps everything else strong and ready for abuse and design details like bottle cage mounts and a port for dropper post cable routing help you make your rides more comfortable. hydraulic shimano front and rear brakes, 27.5+ x 3.0" tires, sealed bearings and theory parts throughout put it in a league of its own.
Share

Collapsible content
specs
- frame: 6061 aluminum w/ bottle cage mounts, dropper post entry door
- fork: 100% 4130 chromoly w/ tapered legs (30mm offset)
- bars: hi-ten (5" rise x 30" wide)
- grips: theory data flanged 150mm w/ theory bar ends
- stem: theory bond top load (50mm)
- headset: theory sealed integrated
- brake lever: shimano mt 201 hydraulic disc
- brakes: shimano mt 200 hydraulic disc, 160mm rotor
- cranks: 3-piece tubular chromoly 8-spline (170mm length)
- bottom bracket: sealed mid (19mm)
- pegs: n/a
- pedals: theory outside nylon
- chain: theory 410
- sprocket: theory legacy, 6061-t6 aluminum (32t)
- seat: rixin aspect railed
- seat post: alloy micro adjust 27.2 x 300mm
- seat clamp: alloy qr clamp
- front hub: alloy low flange w/ disc brake mount, sealed (3/8" axle)
- ear hub: theory turnstyle alloy high engagement disc, sealed (14mm axle)
- cog: 16t
- rims: 6061 aluminum double wall (36h)
- tires: street level (27.5 x 3.0")
- weight: 33 lbs 4 oz
- recommended sizing guide: 5'4"+
geometry
- top tube length: 23.5"
- headtube angle: 71°
- seat tube angle: 71°
- standover height: 14.3"
- chainstay length: 17.6" slammed
- fork offset: 30mm
-

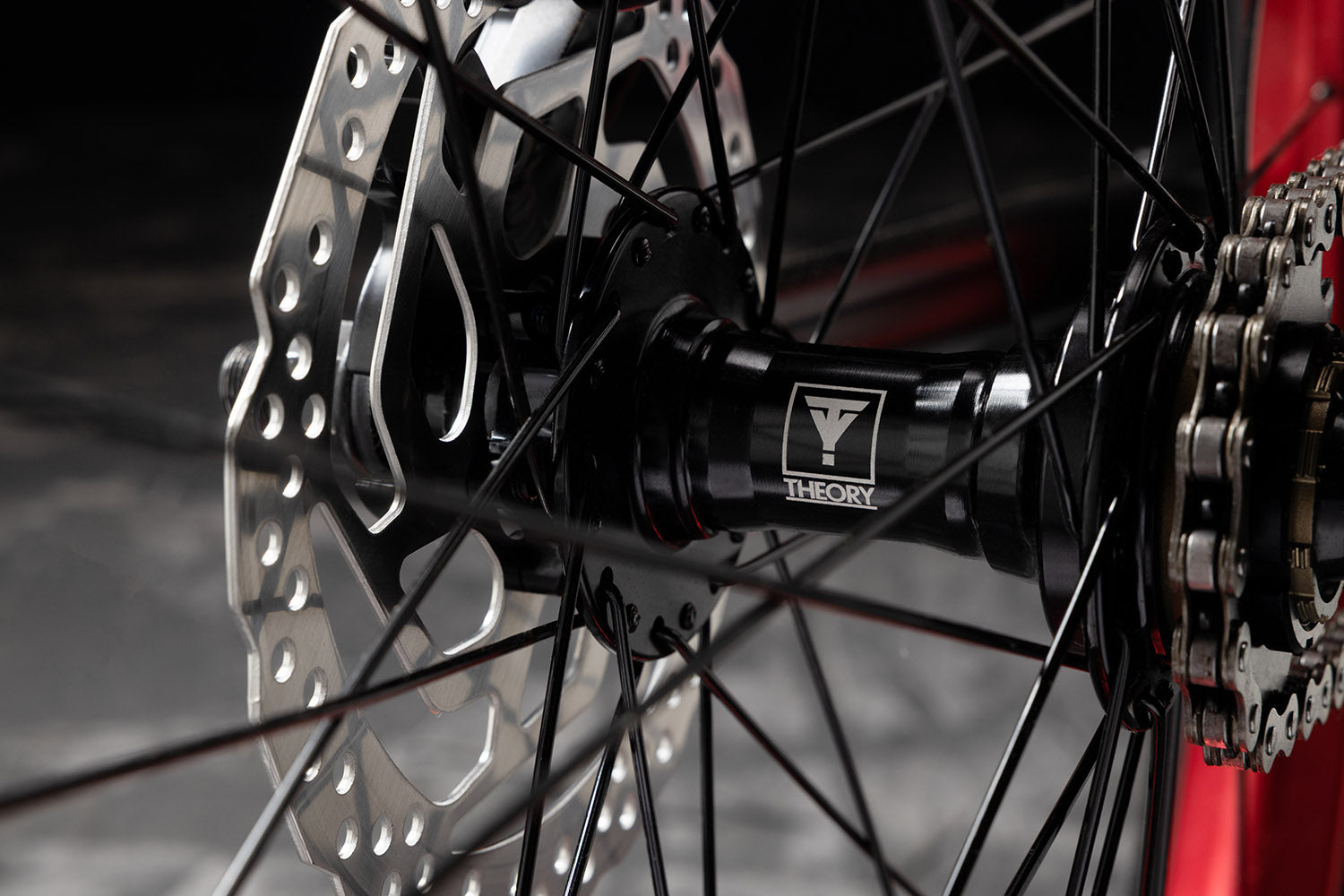

theory turnstyle high engagement cassette with a 14mm axle
-

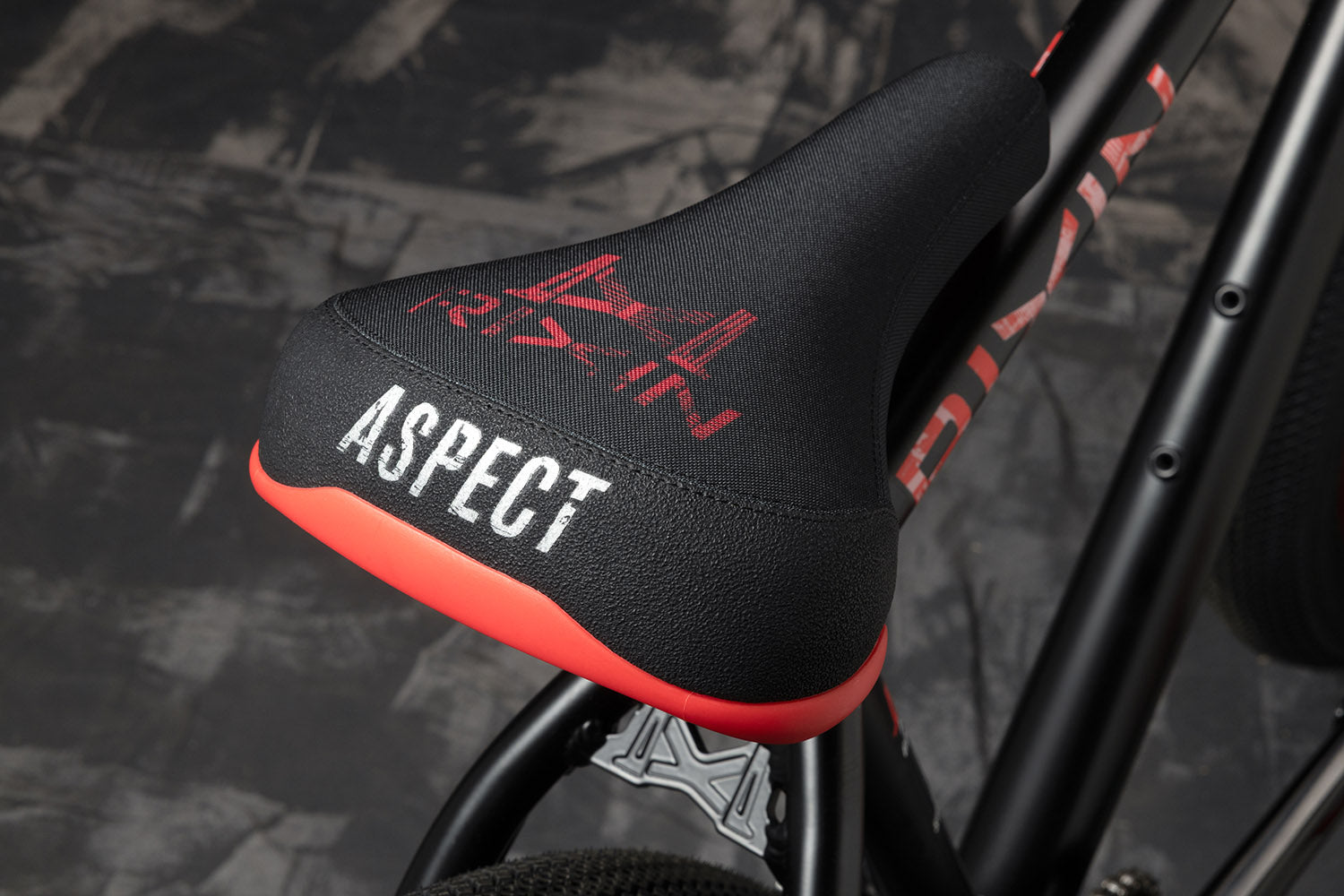

custom rixin aspect seat, machined seatstay bridge and water bottle cage mounts
-

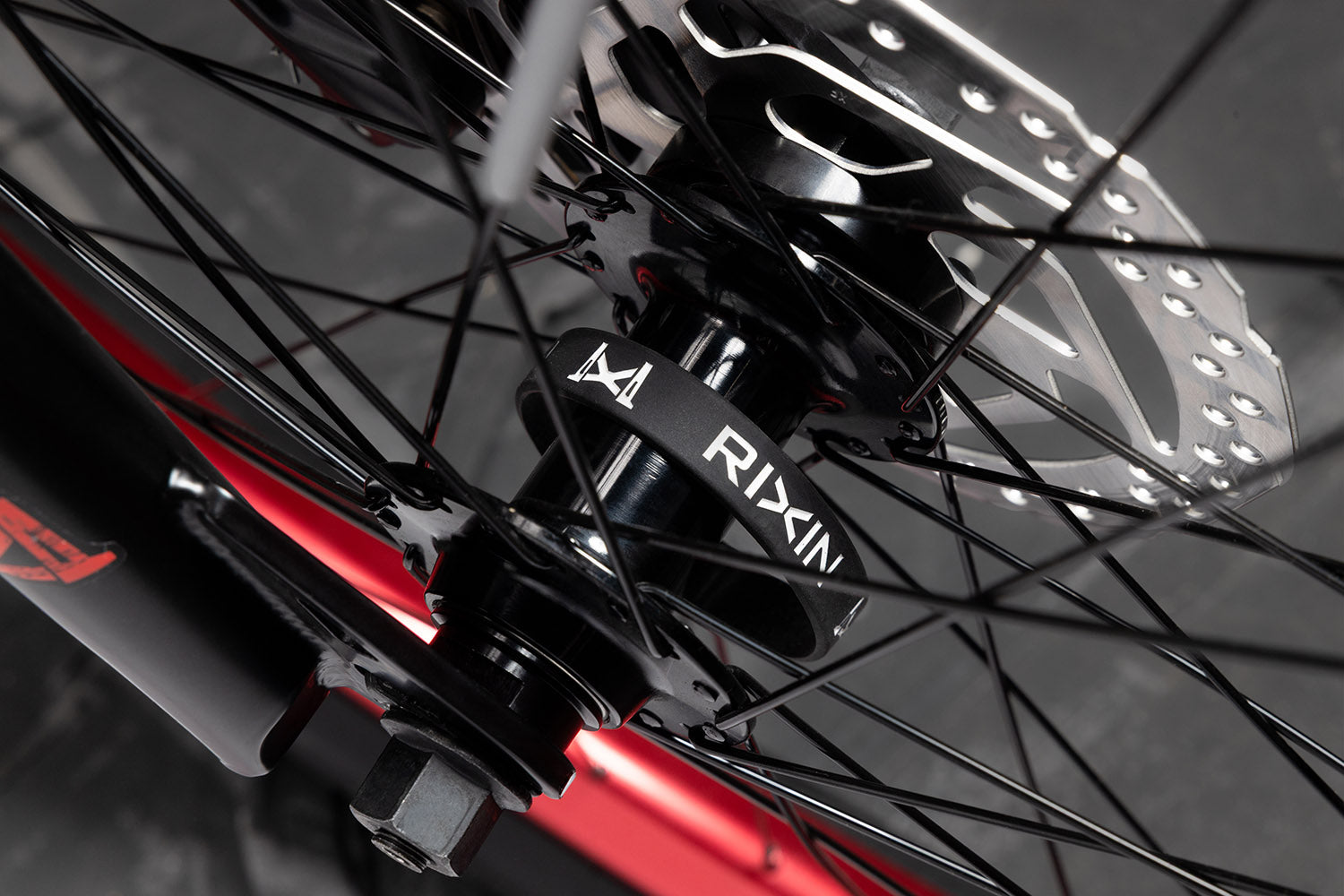

front wheel with rixin wristband and reflective spoke cover
