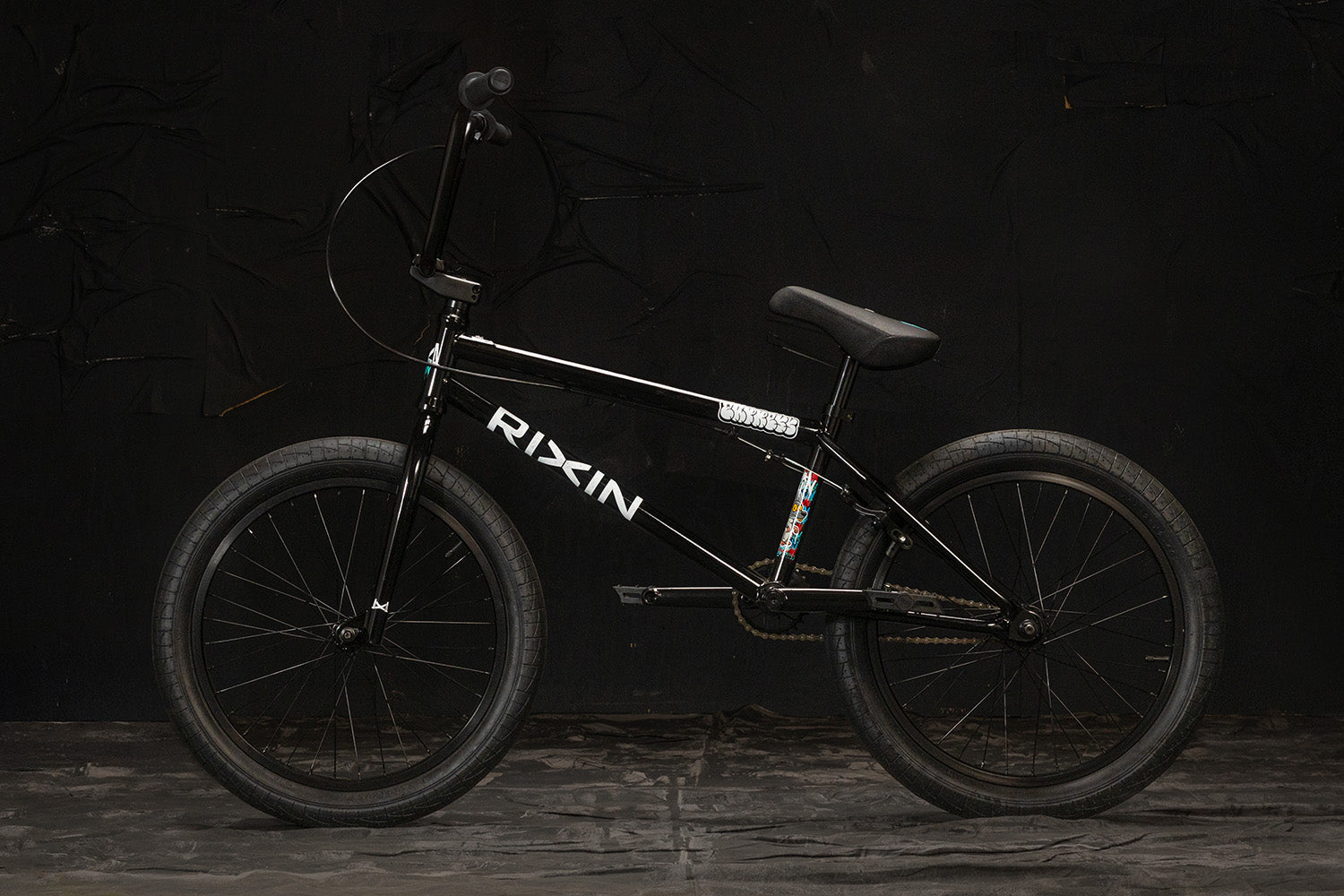

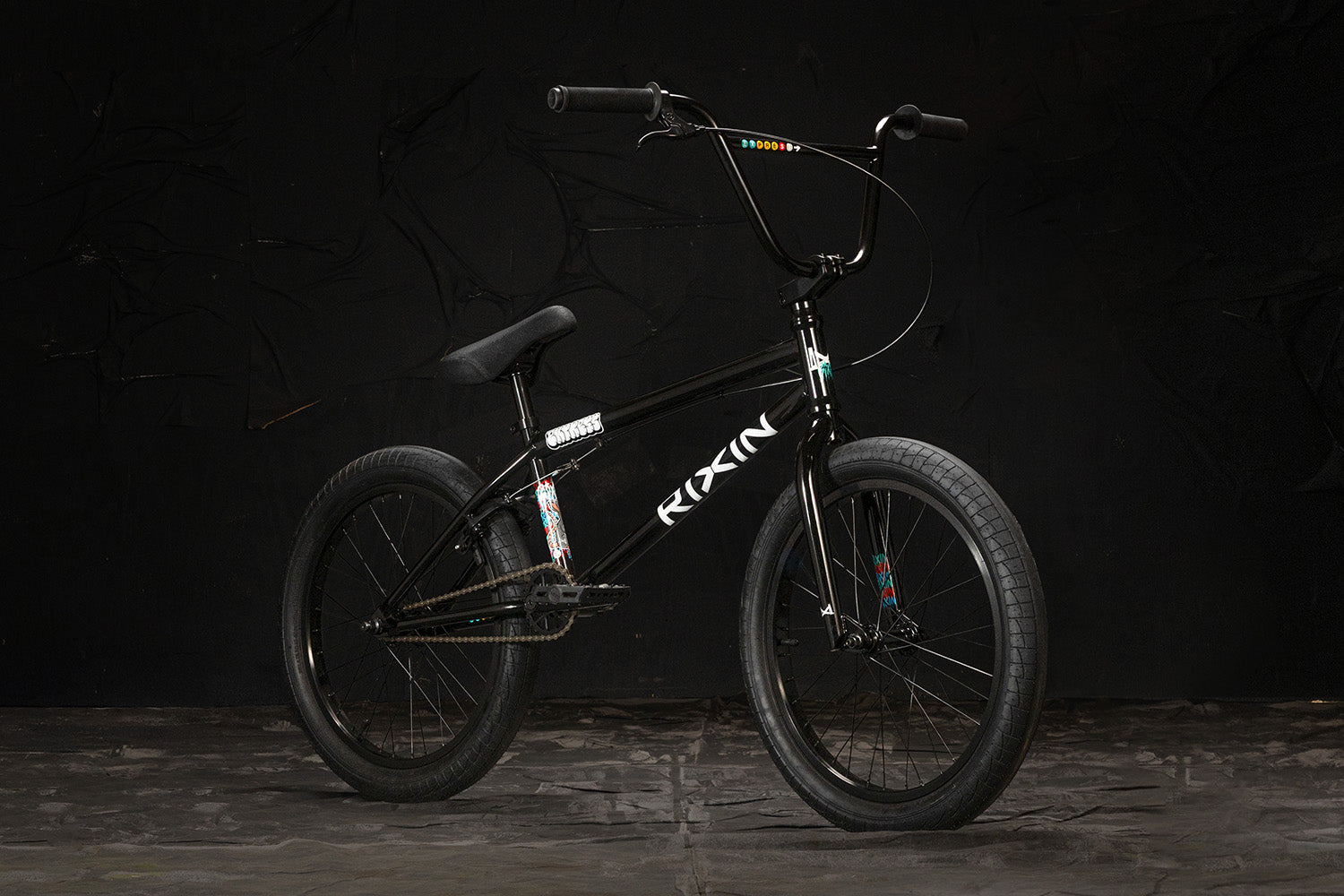

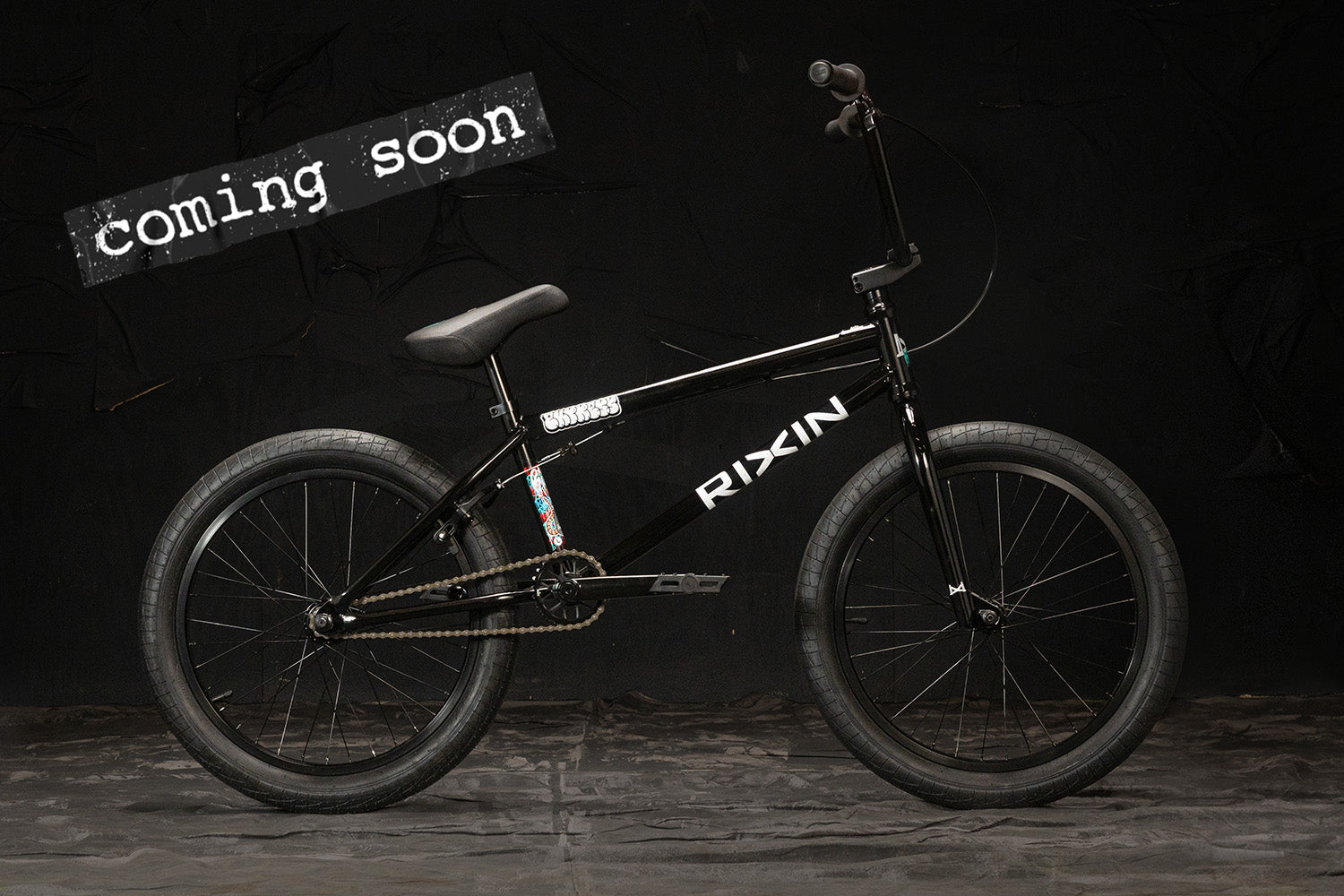

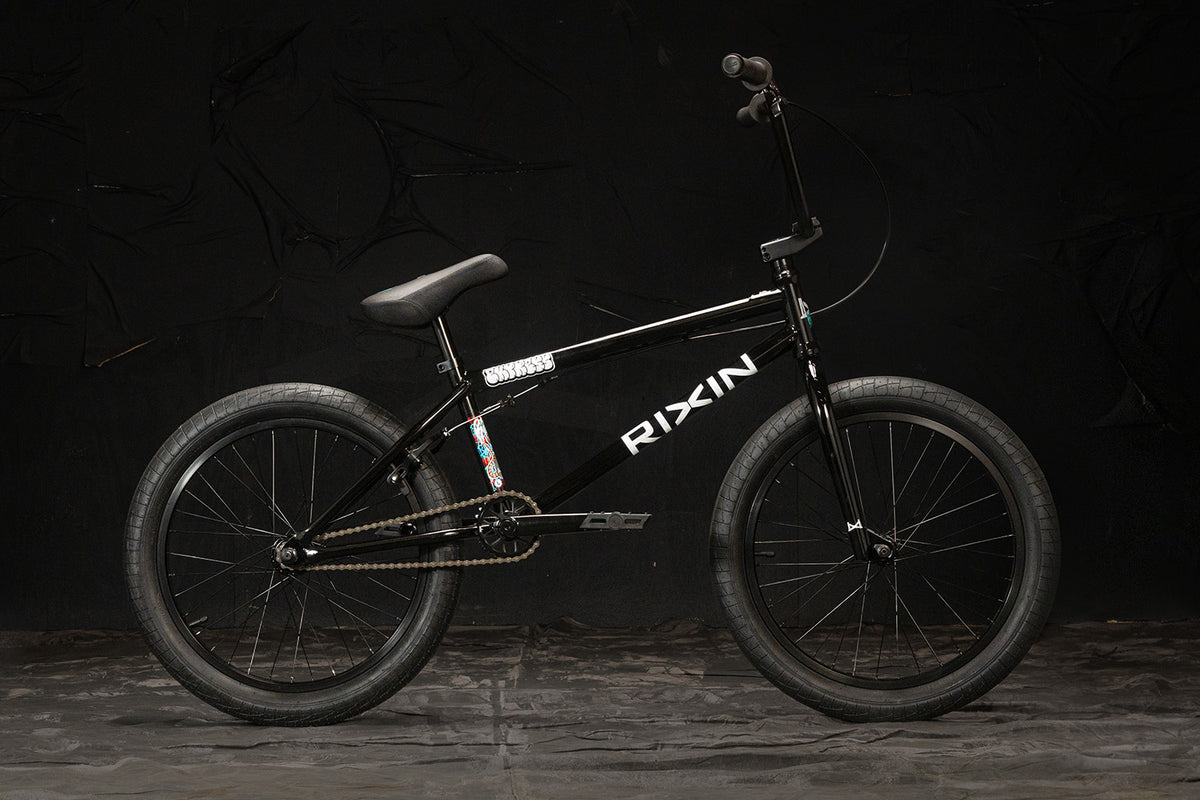

express complete bike 20"

express complete bike 20"

$549.99 USD
$549.99 USD
Sale Sold out
Color: black

The express is made to perform at a higher level with more progressive geometry and quality that can handle the abuse of more advanced riding, whether it's street, park, or dirt. chromoly downtube frame and full chromoly fork have the strength needed to take it all on. 2.4" street tires on wheels with sealed bearing hubs, rixin pivotal seat and theory components complete the build with everything you need.

View full details

specs

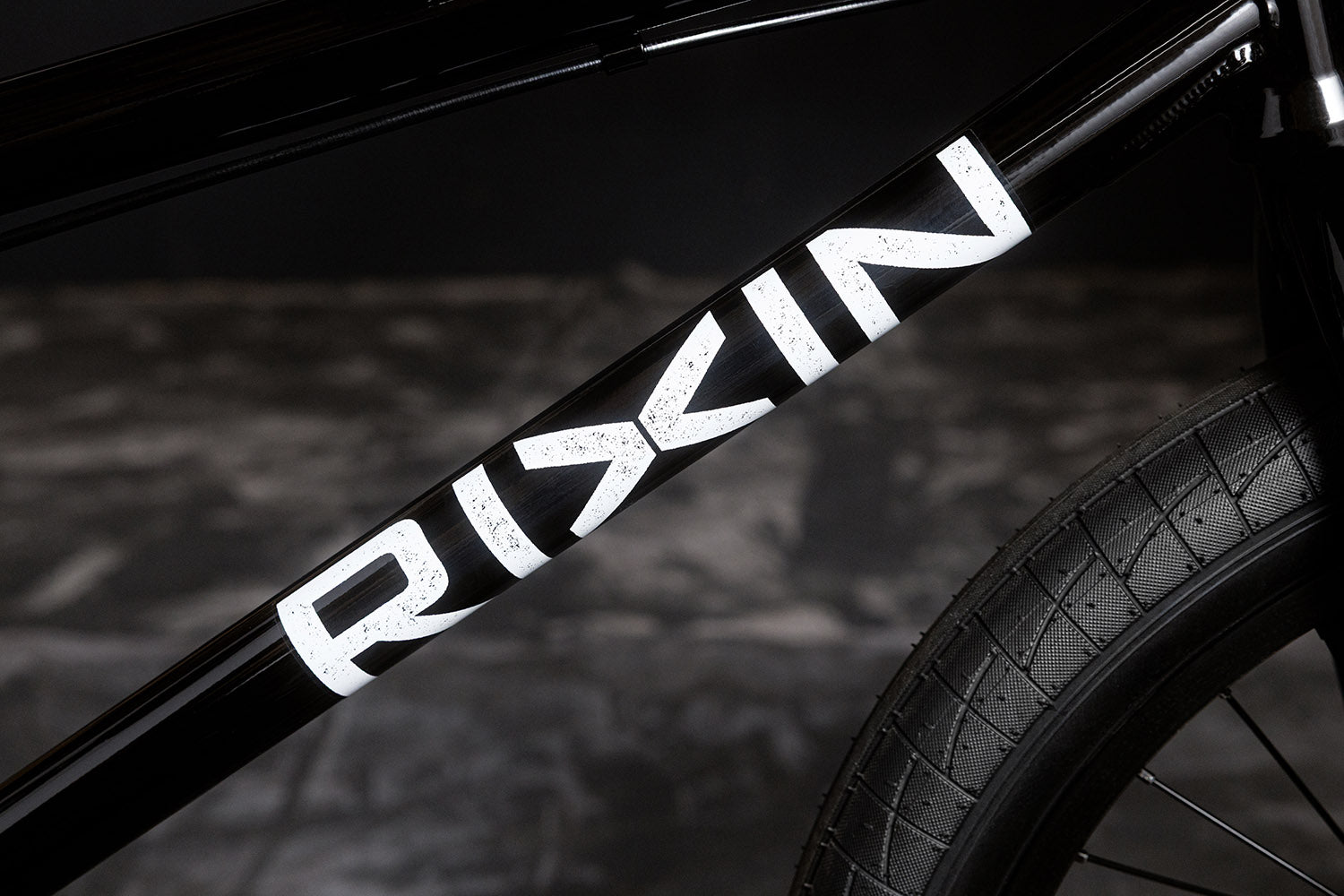

  • frame: 4130 chromoly dt

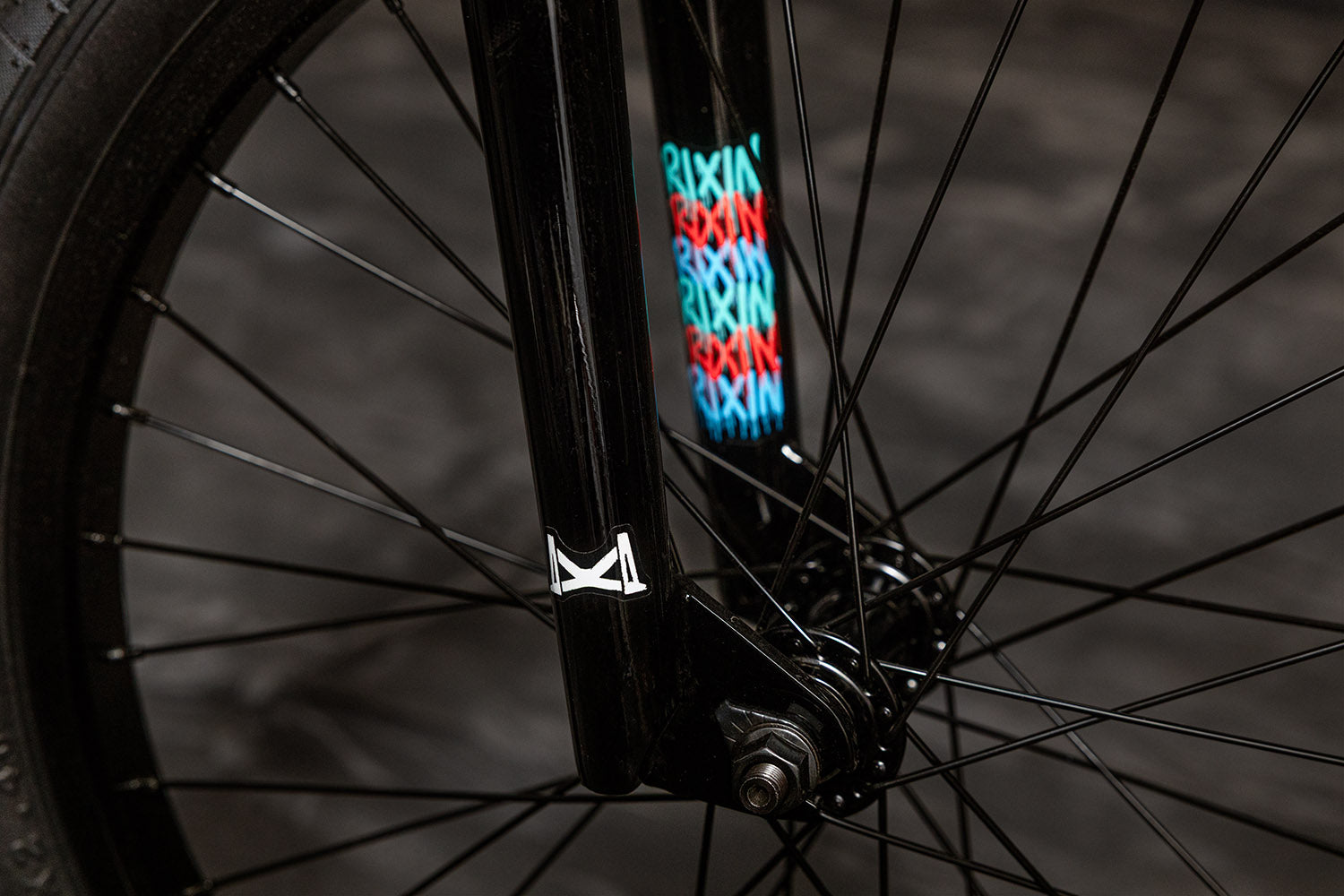

  • fork: 100% 4130 chromoly w/ tapered legs (30mm offset)
  • bars: hi-ten (9" rise x 29.25" wide)

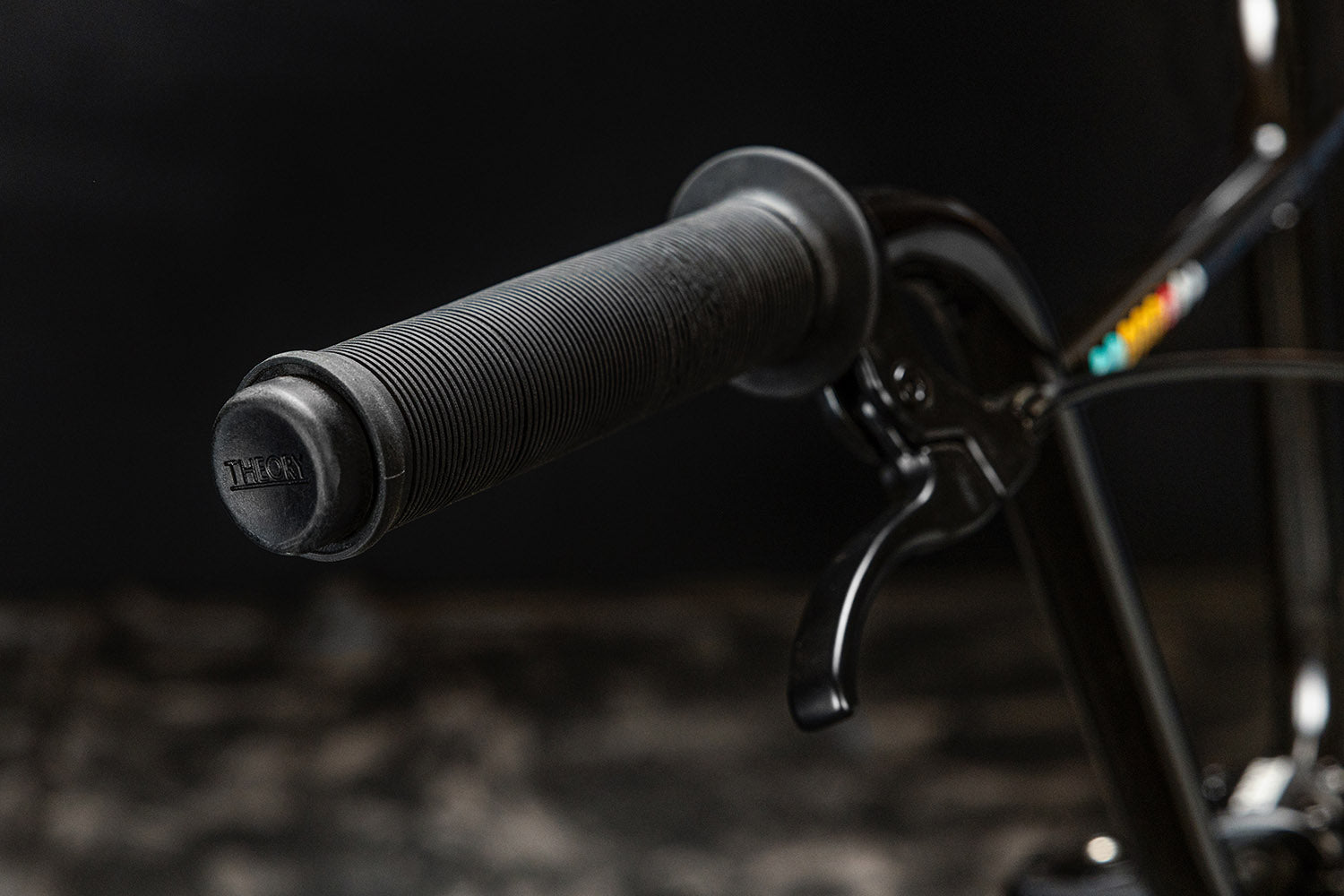

  • grips: theory data flanged 150mm w/ theory bar ends

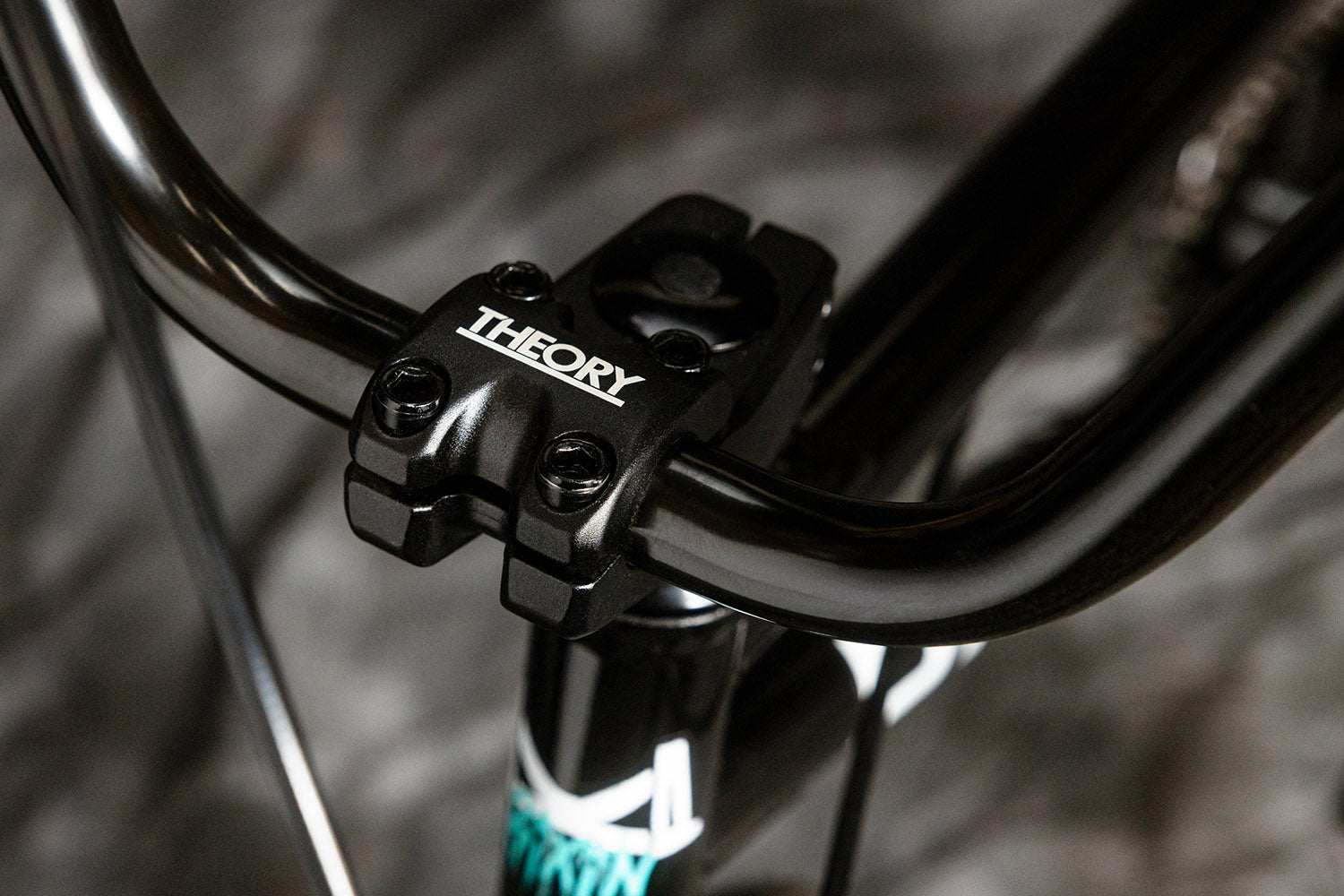

  • stem: theory bond top load (50mm)
  • headset: theory sealed integrated
  • brake lever: alloy 2-finger
  • brake cable: linear cable
  • brakes: 990 u-brakes
  • cranks: 3-Piece tubular chromoly 8-spline (165mm length)
  • bottom bracket: sealed mid (19mm)
  • pegs: n/a

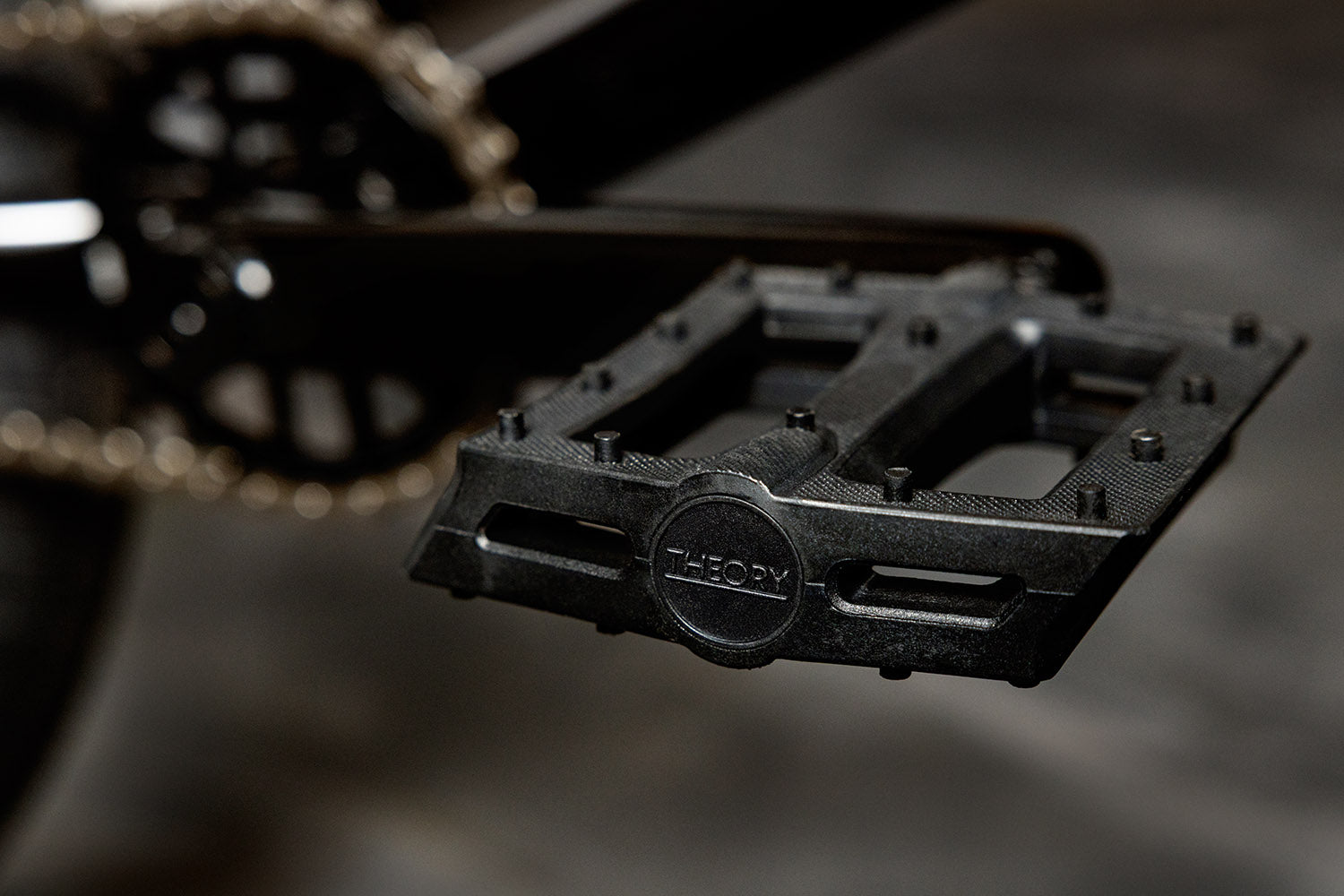

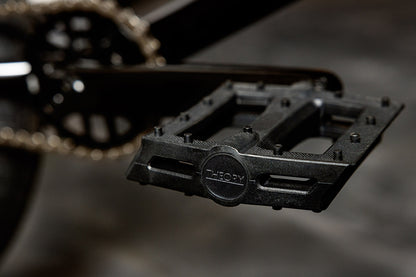

  • pedals: theory outside nylon
  • chain: theory 410

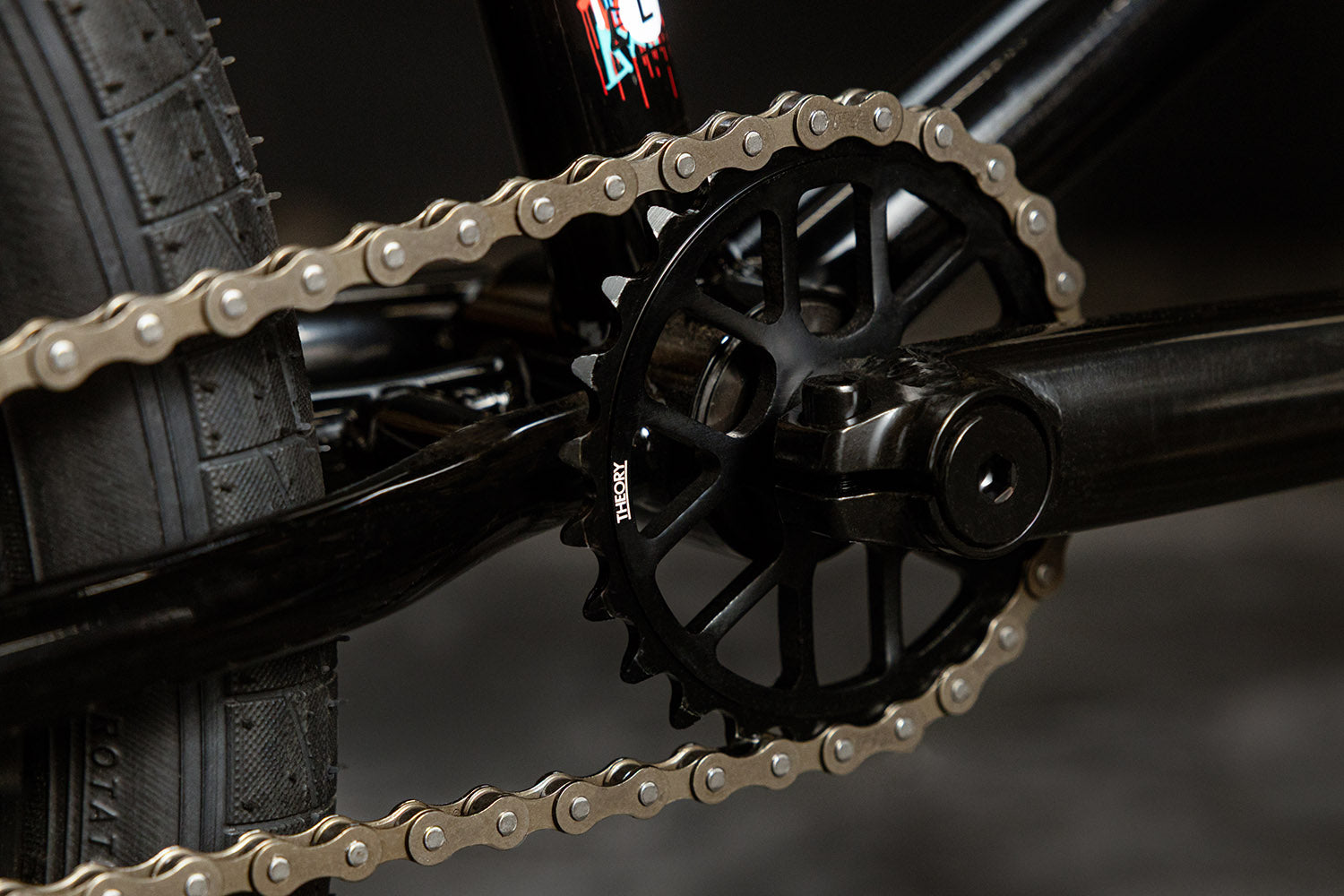

  • sprocket: theory verify, 6061-t6 aluminum (25t)
  • seat: rixin pivotal
  • seat post: alloy pivotal, 250mm (25.4mm)
  • seat clamp: alloy clamp
  • front hub: alloy low flange, sealed (3/8" axle)
  • rear hub: alloy sealed cassette (14mm axle)
  • driver: 9T sealed
  • rims: 6061 aluminum single wall (36h)

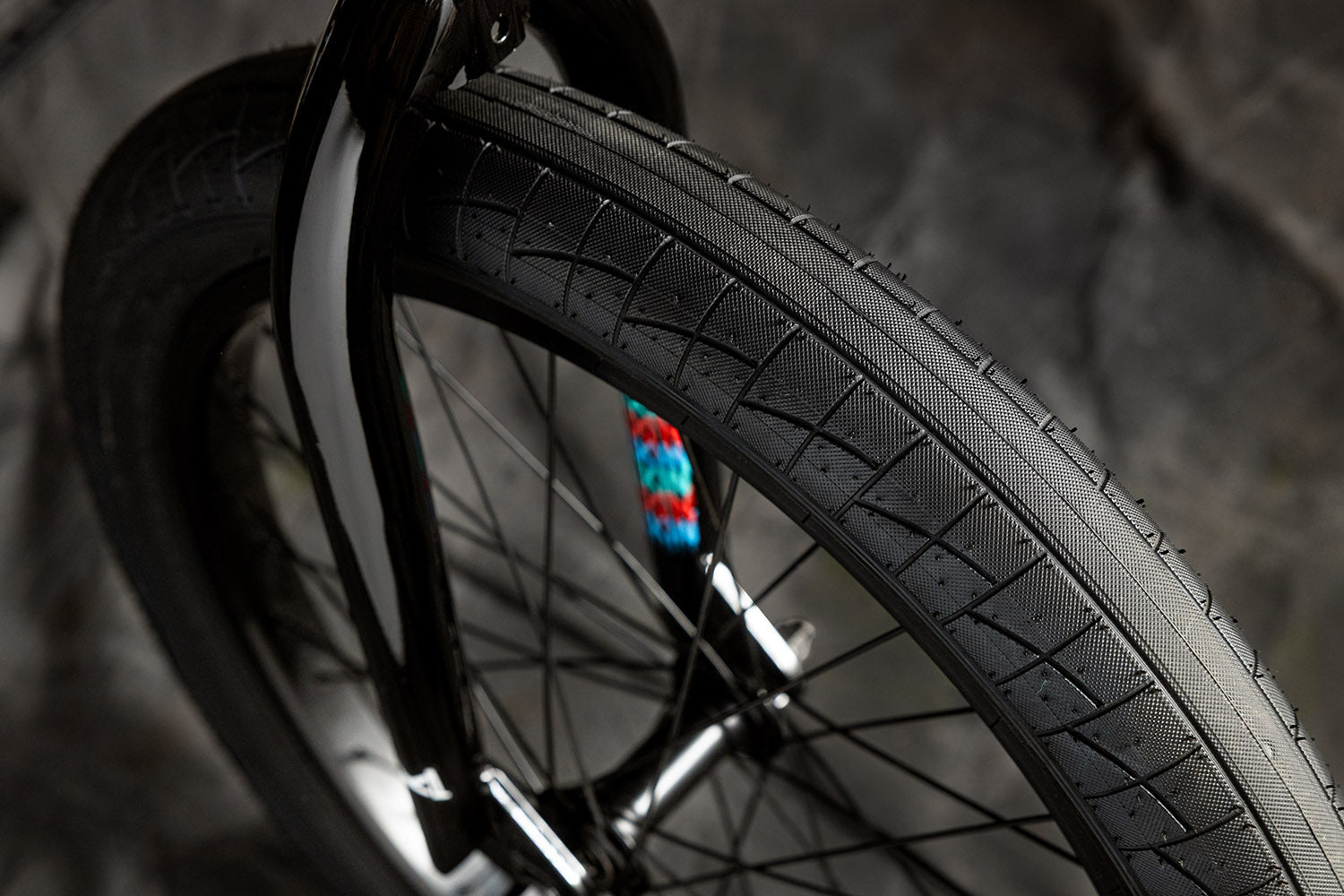

  • tires: street design (20 x 2.4")
  • weight: 24lbs 7 ounces
  • recommended sizing guide: 5'1 - 5'8"

geometry

  • top tube length: 20.5"
  • headtube angle: 75°
  • seat tube angle: 71°
  • standover height: 9"
  • bottom bracket height: 11.75"
  • chainstay length: 13" slammed
  • fork offset: 30mm

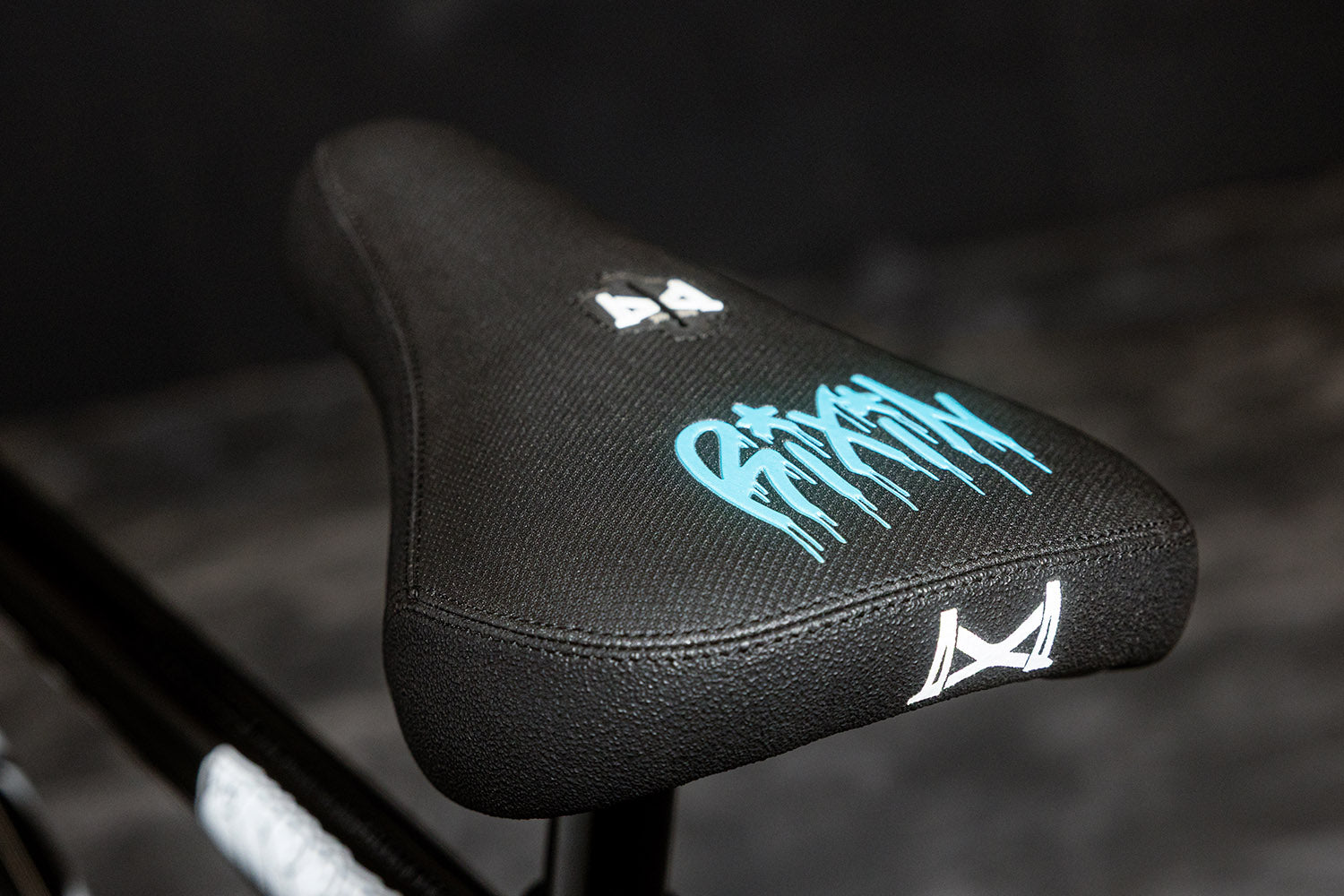

  • rixin drip pivotal seat

  • 25t theory verify sprocket and theory 410 chain

  • sealed bearing hubs and street proven 2.4" tires
